XD371X Fire Signal Butterfly Valve
Product overview
Product model: XD371X
Nominal pressure: PN1.0~ 2.5MPa
Nominal diameter: DN50~350mm
Operating temperature: -10℃-80℃
Applicable medium: water, oil and gas
Design standard: GB/T12238-2008
Structure length: GB/T12221-2005
Connection standard: JB/T 79.1-1994
Pressure test: GB/T13927-2008
XD371X Fire Signal Butterfly Valve basic Information
|
Serial number
|
Part Name
|
Material
|
Serial number
|
Part Name
|
Material
|
|
1
|
Body
|
Ductile iron, cast steel
|
7
|
Sealing ring
|
NBR.EPDM
|
|
2
|
Valve shaft
|
SUS410 / SUS316
|
8
|
Round spacers
|
SUS316 / brass
|
|
3
|
Butterfly plate
|
Ductile iron spray, stainless steel
|
9
|
Open ring
|
SUS316 / brass
|
|
4
|
Seat
|
EPDM, PTEE
|
10
|
Ring
|
Spring steel
|
|
6
|
bushing
|
Bronze, Teflon
|

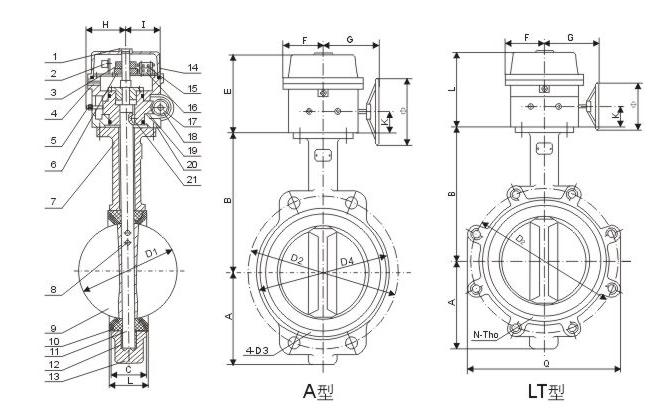

XD371X Fire Signal Butterfly Valve main dimensions and weight (PN1.0 / 1.6MPa)
| DN (mm) | A | B | C | D1 | L | n-Φ | K | E | 4-Φ1 | Φ2 | G | Weight WT (kg) |
| 50 | 140 | 80 | 43 | 125 | 32 | 4-19 | 77 | 57.15 | 4-6.7 | 12.6 | 100 | 3.34 |
| 65 | 152 | 89 | 46 | 145 | 32 | 4-19 | 77 | 57.15 | 4-.67 | 12.6 | 120 | 3.94 |
| 80 | 159 | 95 | 45.21 | 160 | 32 | 8-19 | 77 | 57.15 | 4-.67 | 12.6 | 127 | 4.05 |
| 100 | 178 | 114 | 52.07 | 180 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 15.77 | 156 | 5.48 |
| 125 | 190 | 127 | 55.5 | 210 | 32 | 8-19 | 92 | 69.85 | 4-10.3 | 18.92 | 190 | 7.66 |
| 150 | 203 | 139 | 55.75 | 240 | 32 | 8-23 | 92 | 69.85 | 4-10.3 | 18.92 | 212 | 8.5 |
| 200 | 238 | 175 | 60.58 | 295 | 45 | 8-23 | 115 | 88.9 | 4-14.3 | 22.1 | 268 | 25 |
| 250 | 268 | 203 | 68 | 350 | 45 | 12-23 | 115 | 88.9 | 4-14.3 | 28.45 | 325 | 31.4 |
| 300 | 306 | 242 | 76.9 | 400 | 45 | 12-23 | 140 | 107.95 | 4-14.3 | 31.6 | 403 | 45.9 |
| 350 | 368 | 267 | 76.17 | 460 | 45 | 16-23 | 140 | 107.95 | 4-14.3 | 31.6 | 436 | 54 |
